Solar Water Pumps

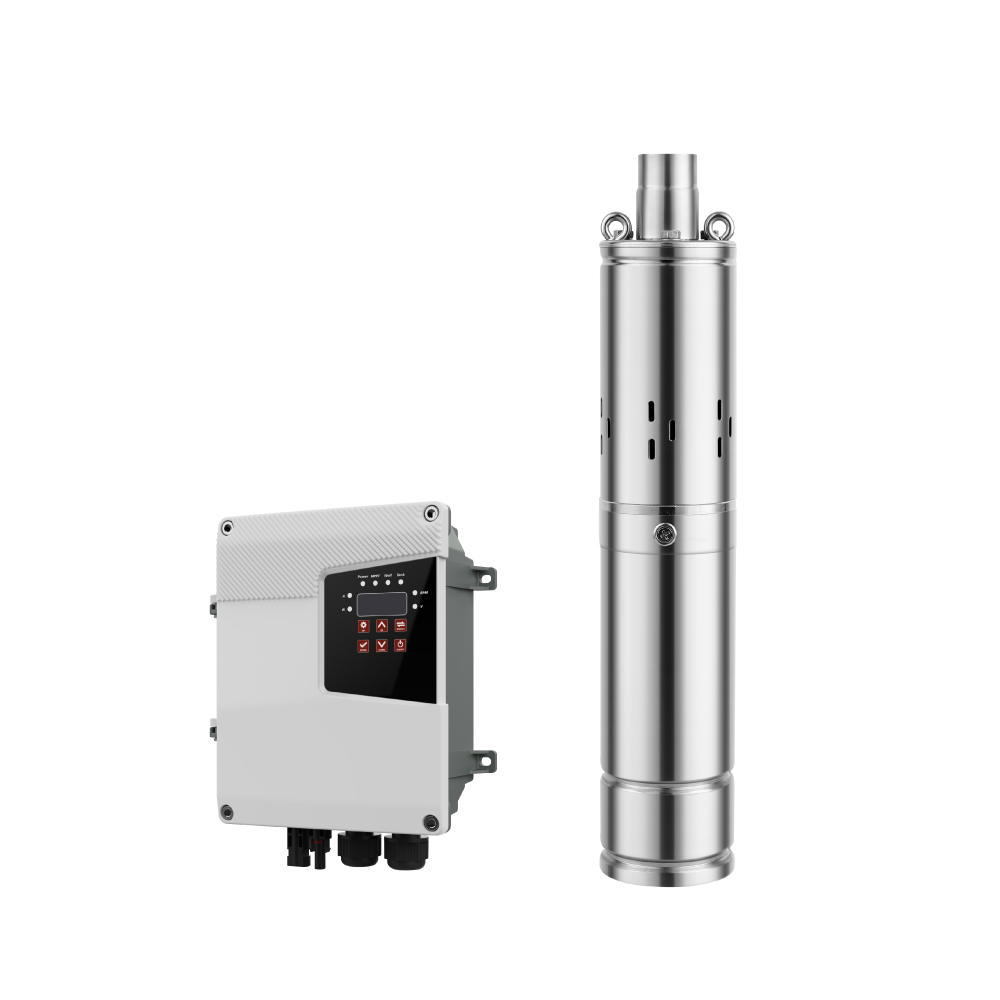

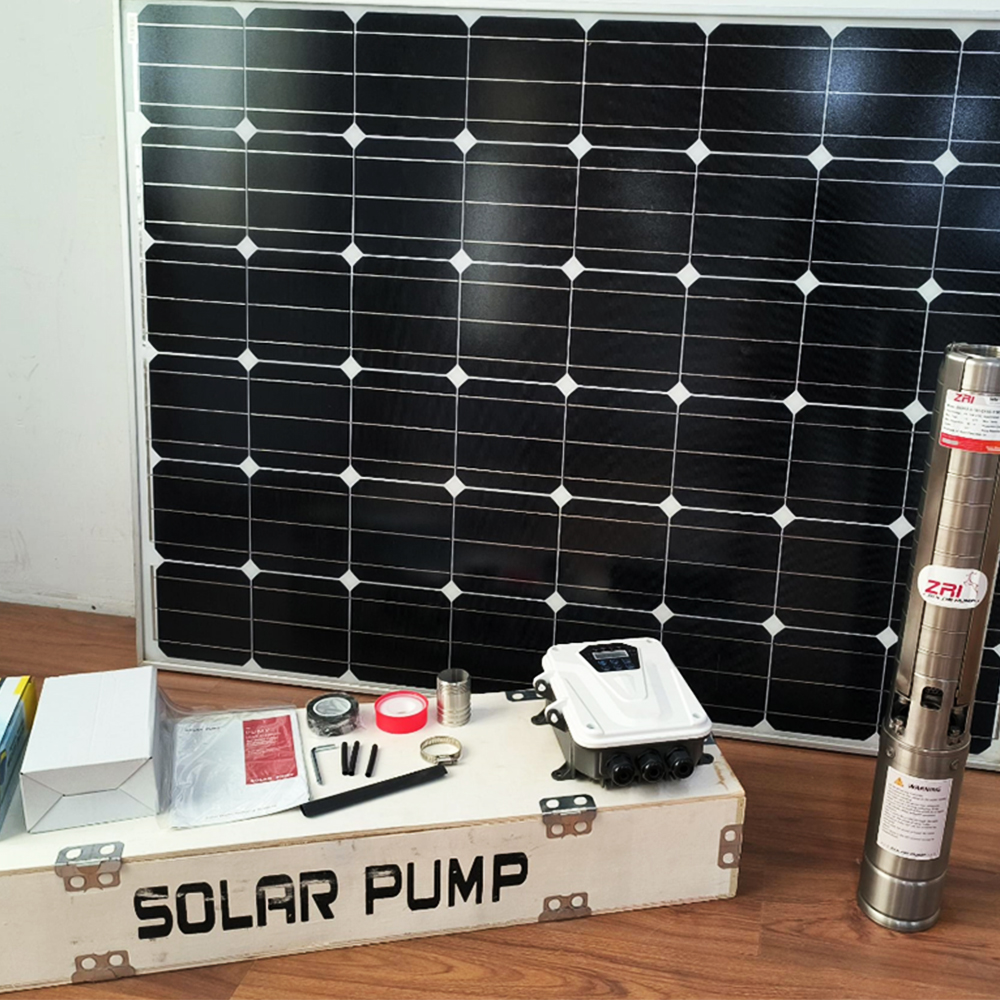

3 INCH SUBMERSIBLE SCREW PUMP : 1\External SSCO_Y3S24 MPPT Controller with display ;2\Input Voltage：20-48V DC, Input Power：60-200W3\Max.flow：0.5 m³/h， Max.head： 28 m, 4\Rated.flow：0.3 m³/h ，@head：15 m, 5\0.75" Outlet, 201SS lantern and Delivery casing,6\Brushless DC motor with 201SS Helical Rotor7\3*1.5mm² 2M length copper round wire; 8\ALL Wooden case Packing, pump, controller, Free Accessioriess

    Contact us
    Details Information
    ITEMDC Solar Screw Pump
    wIith SSCO Mppt Controller    		VoltageOptimum input  voltage(DC)PowerMax. FlowMax. HeadOutletCableController ModelGross Weight(KG)Dimension(cm)Solar panel
    Open circuit voltage (VOC)    /    Power    		PV Panel Matching Suggestion
    （ 常规标准款 SSCO）标称电压工作电压标称功率最大流量最大扬程出水口径电缆线长控制器型号毛重外箱尺寸开路电压配板配板建议
    S3SS0.5-28-12-80D
    		12V20V-36V80W0.5m³/h28m0.75 ''2mSSCO_Y3S2410.570*24*16＜50V≥1.3*PUMP POWER140W 1 PCS
    S3SS1.2-56-24-120D24V30V-48V120W1.2m³/h56m0.75 ''2mSSCO_Y3S2410.570*24*16＜50V≥1.3*PUMP POWER200W 1 PCS
    S3SS1.2-77-36-210D36V30V-48V210W1.2m³/h77m0.75 ''2mSSCO_Y3S2410.570*24*16＜50V≥1.3*PUMP POWER300W 1 PCS
    S3SS1.7-109-48-500D48V60V-90V500W1.7m³/h109m0.75 ''2mSSCO_Y3S481175*24*16＜100V≥1.3*PUMP POWER360W 2 PCS In Series
    S3SS2.0-150-96-750D96V90V-120V750W2.0m³/h150m0.75 ''2mSSCO_Y3S9611.575*24*16＜150V≥1.3*PUMP POWER360W 3 PCS In Series
    S3SS2.2-180-110-1100D110V110-150V1100W2.2m³/h180m0.75 ''2mSSCO_Y3S1111.575*24*16＜200V≥1.3*PUMP POWER250W 4 PCS In Series2Line In Parallel(Total 8 Pcs)
    S3SS2.2-180-150-1100D150V150-180V1100W2.2m³/h180m0.75 ''2mSSCO_Y3S1511.575*24*16＜380V≥1.3*PUMP POWER360W 4 PCS In Series
